OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OMSLC007474_19

Operating the Foot Brakes

During Road Travel

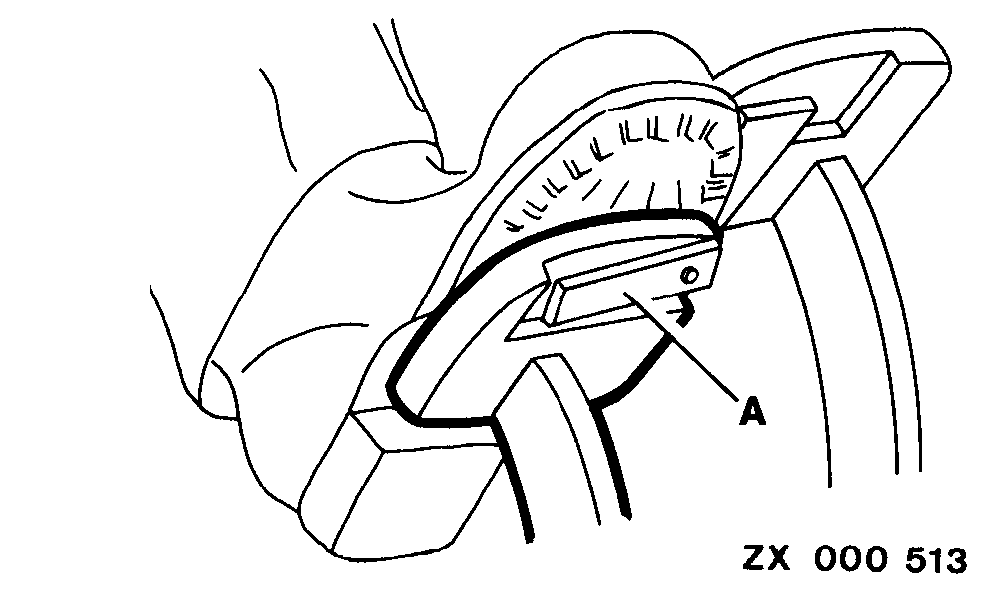

causym CAUTION: For safety reasons, always couple brake pedals by means of pedal coupler (A) when driving on public roads. This ensures that the brakes are actuated together.

ZX,OMSLC007474 -19-16DEC96-1/2

During Field Travel

causym CAUTION: When stopping the combine harvester, always depress both pedals simultaneously.

When negotiating sharp turns, use individual brakes to assist steering. For this purpose, disengage pedal coupler (A).

ZX,OMSLC007474 -19-16DEC96-2/2
