Forward and Reverse Travel

causym CAUTION: Always adapt ground speed of harvester to road or field conditions.

With forward/reverse lever in "Neutral" position:

    Select a suitable gear:

  • 3rd gear for road travel.
  • 2nd gear for field operation.

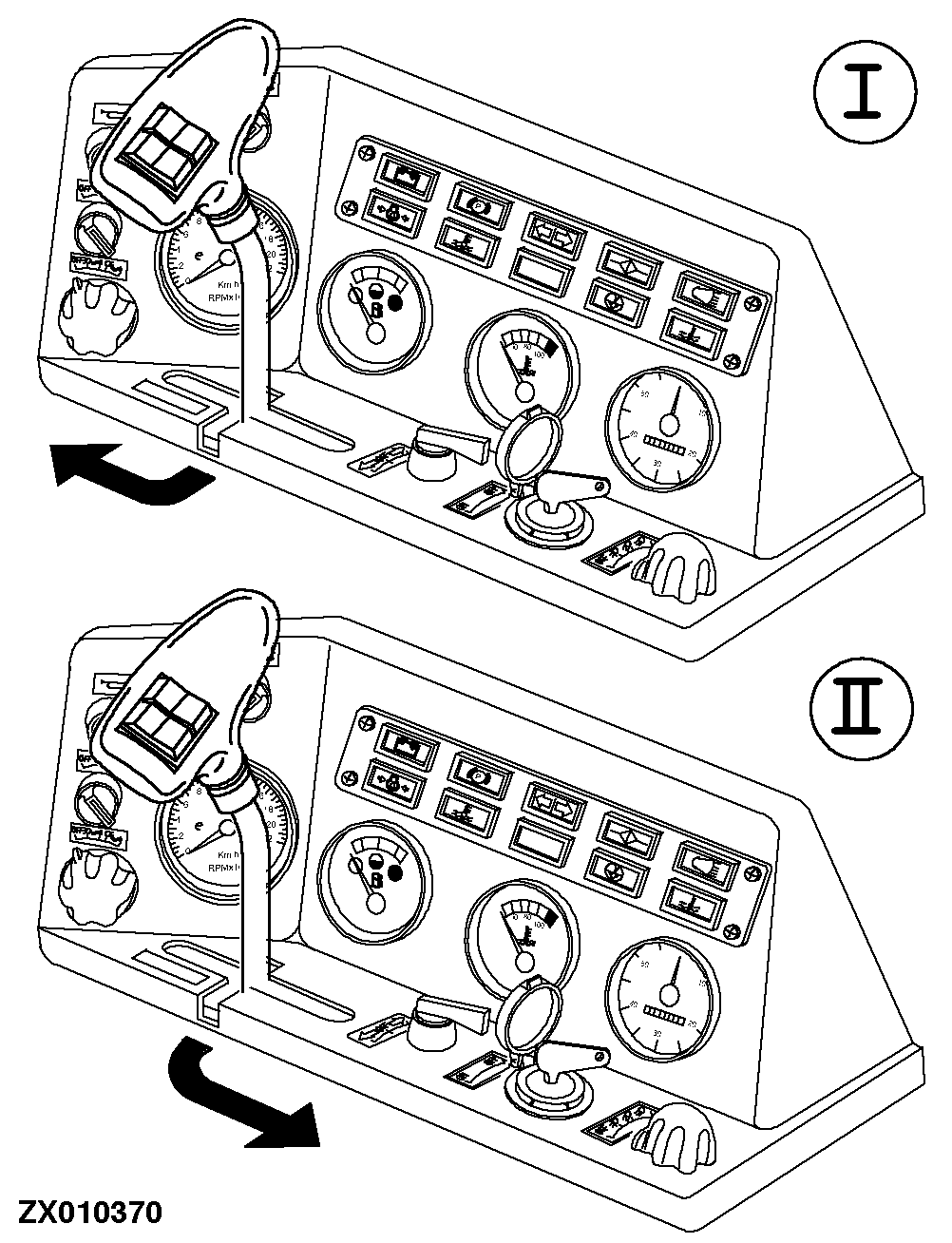

Forward Travel (I)

Slowly push forward/reverse lever from "Neutral" to "Forward".

Reverse Travel (II)

Slowly pull forward/reverse lever from "Neutral" to "Reverse".

ZX010370

ZX,OMSLC007475 -19-16DEC96-1/1
