Towing the Harvester

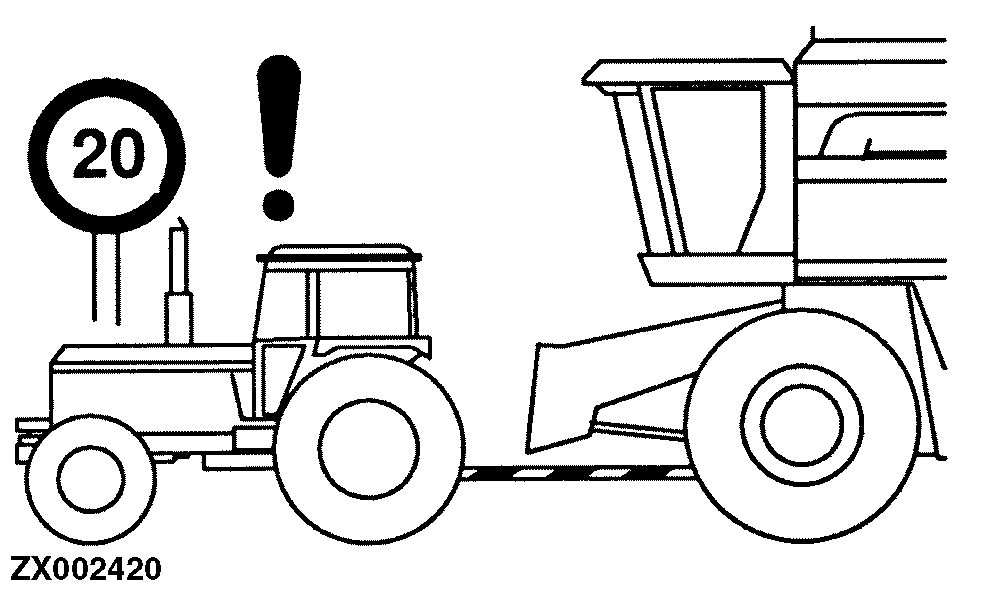

causym CAUTION: Never tow harvester with a wire rope. Always use a suitable towbar. Connect towbar to towing eye on front axle.

Prepare harvester as shown under "Transporting under Own Power".

IMPORTANT: Towing at speeds higher than 20 km/h (12.4 mph) could damage tires, transmission and final drives.

Tow harvester at a safe and suitable speed, not to exceed 20 km/h (12.4 mph).

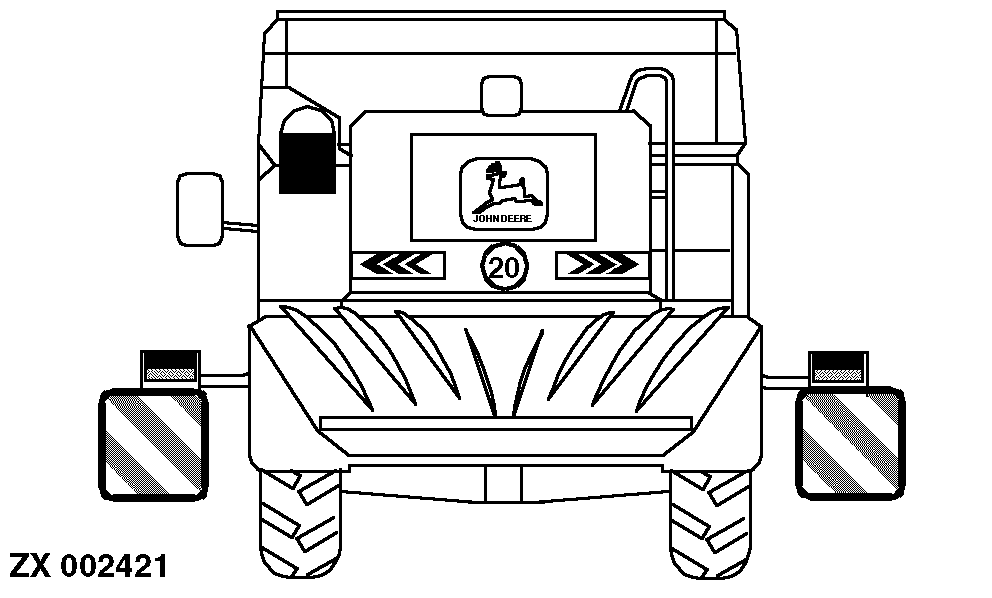

Comply with local traffic regulations when towing the harvester, e.g. turn on flashing warning lights, display warning signs etc.

ZX002420
ZX002421

ZX,OMSLC007480 -19-16DEC96-1/2

Release Parking Brake

Release parking brake (A) then place gear shift lever in neutral position.

IMPORTANT: During towing, it is essential that the three-speed transmission is in neutral.

ZX010361

ZX,OMSLC007480 -19-16DEC96-2/2
