OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OMSLC007481_19

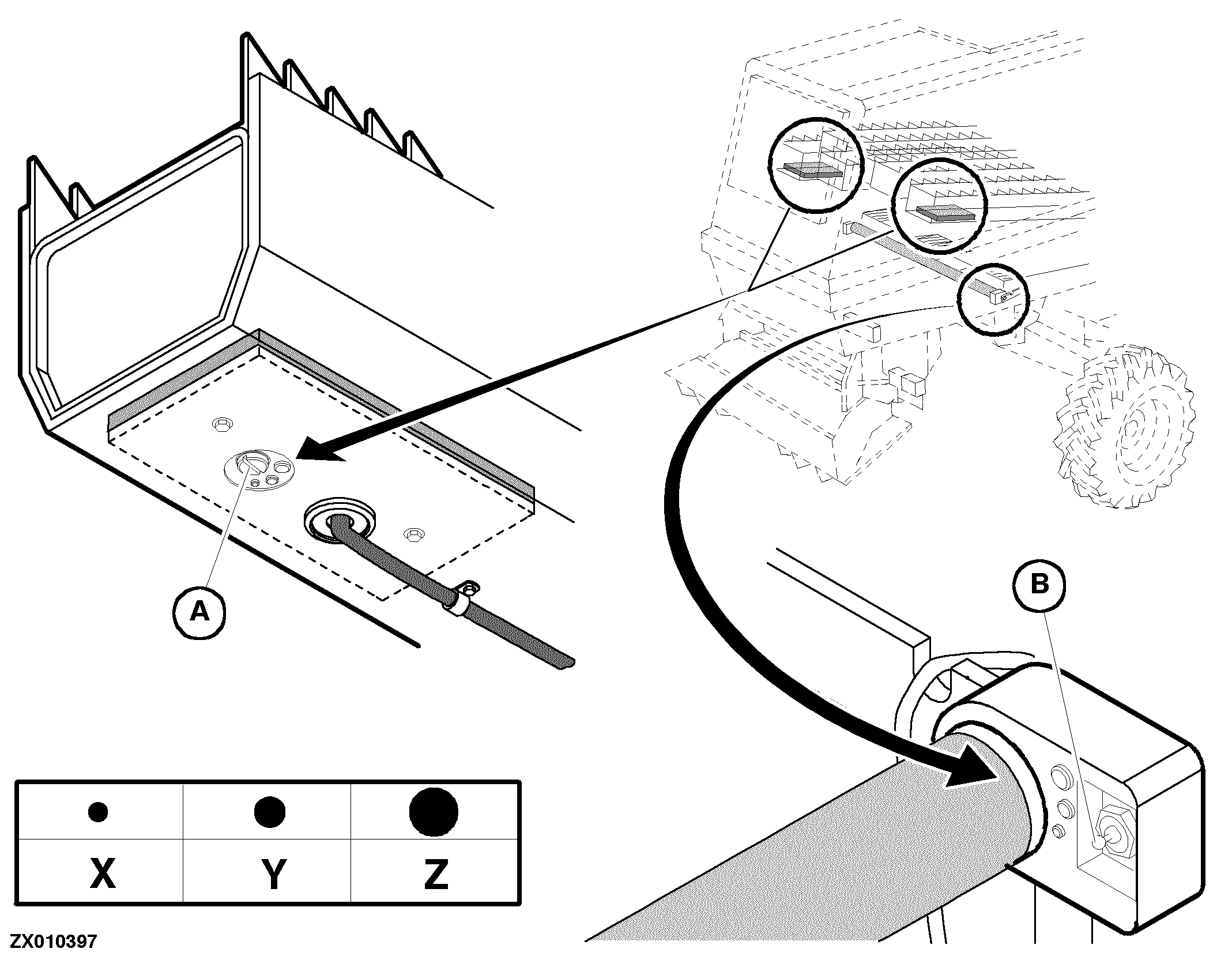

A-Straw walker sensor setting switch

B-Sieve sensor setting switch

X - Higher sensor sensitivity for finer grain crops

Y - Medium sensor sensitivity for medium grain crops (covers a wide range of standard crops)

Z - Lower sensor sensitivity for coarse grain crops

ZX,OMSLC007481 -19-19DEC96-1/1
