Installing the Chain and Shield

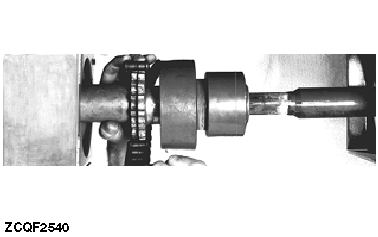

Place the chain on the two sprockets on both sides of the header.

IMPORTANT: Make sure the header is level after installing it.

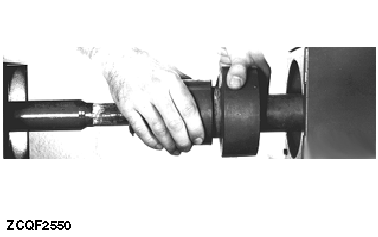

NOTE: Do not tie the chain. The protective shield will keep the chain on the sprockets. Push the protective shield on both sides of the combine.

ZCQF2540
ZCQF2550

ZX,OMSLC007516 -19-28DEC96-1/1
