Levelling the Header

NOTE: The adjustment is made on the right side. For illustration purpose, hydraulic reverser has been removed.

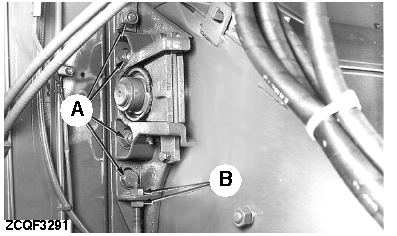

Loosen the 4 bolts (A).

Turn nuts (B) until the header is level.

Tighten bolts (A) and nuts (B).

ZX,OMSLC007518 -19-28DEC96-1/1
