Bracket for Hydraulic Hoses

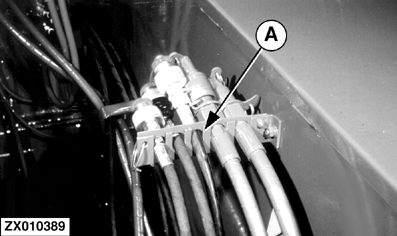

With header detached, the hydraulic hoses can be stored in the bracket (A) on r.h. side of the feeder house. This will prevent them from damage and dirt contamination during transport.

After removal of safety wire, the upper bracket part can be swung open.

IMPORTANT: After removal from the header, the two hoses for the reel drive should be coupled together to permit oil flow when header drive is accidentally engaged.
