Locking Header Lift Cylinders

CAUTION: Always insert the safety rail before working on raised header.

IMPORTANT: Insert safety rail only when header is fully raised.

Before working on raised header, insert safety rail (A) above the lift cylinders.

Before starting field operation, remove safety rail (A) and secure it with chain (B).

NOTE: One or two safety rails are fitted, depending on national equipment standards.

A-Safety Rail
B-Chain

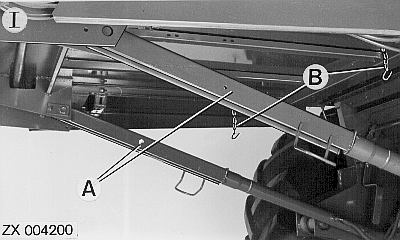

I-Safety Rail Inserted

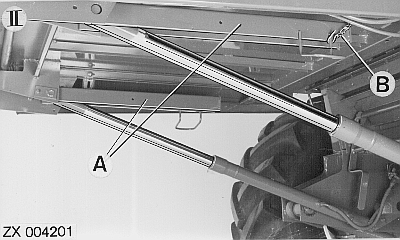

II-Safety Rail Removed

ZX,OMSLC007520 -19-28DEC96-1/1
