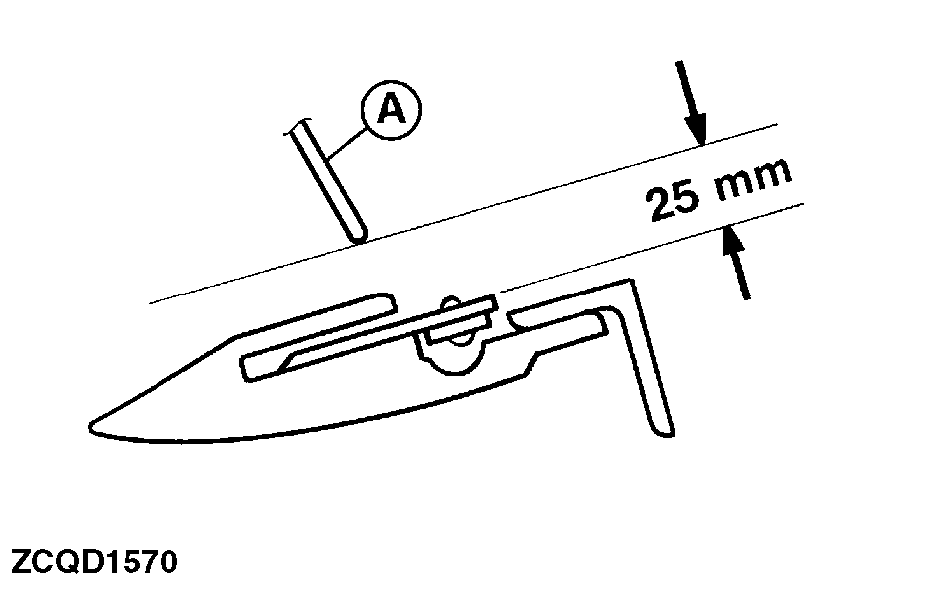

The minimum possible distance between the pickup fingers (A) and cutterbar is 25 mm (1 in.).

ZX,OMSLC007524 -19-28DEC96-1/2

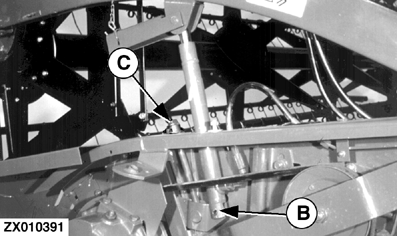

Adjust the minimum distance by moving the bottom of the reel lift cylinders (B) using adjusting screw (C).

Always set both hydraulic cylinders at the same height.

ZX,OMSLC007524 -19-28DEC96-2/2
