Operating the Cutting Platform in Standing Crops

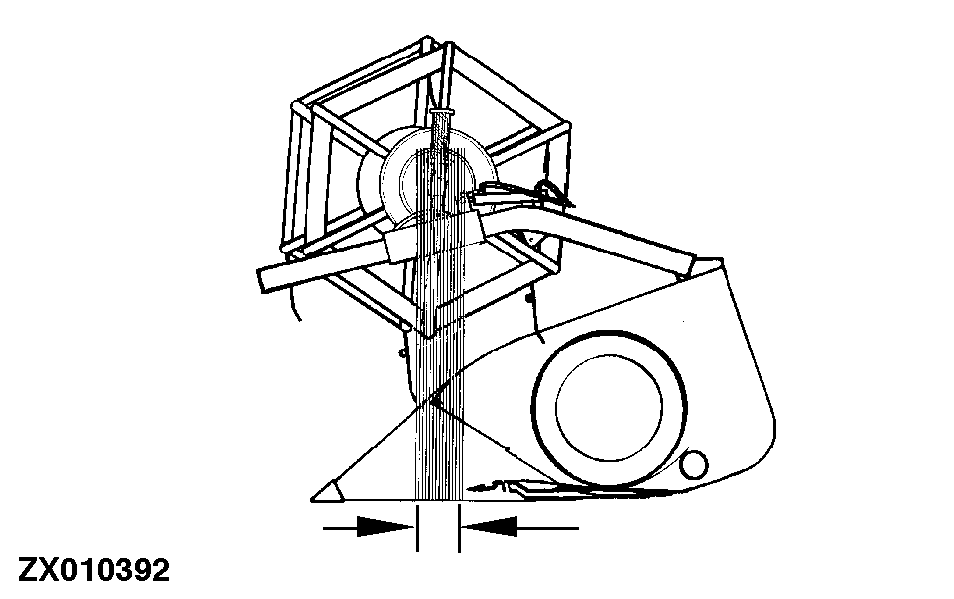

The reel shaft should be 150 to 200 mm (5.9 to 7.9 in.) forward of the cutterbar.

ZX010392

ZX,OMSLC007525 -19-28DEC96-1/2

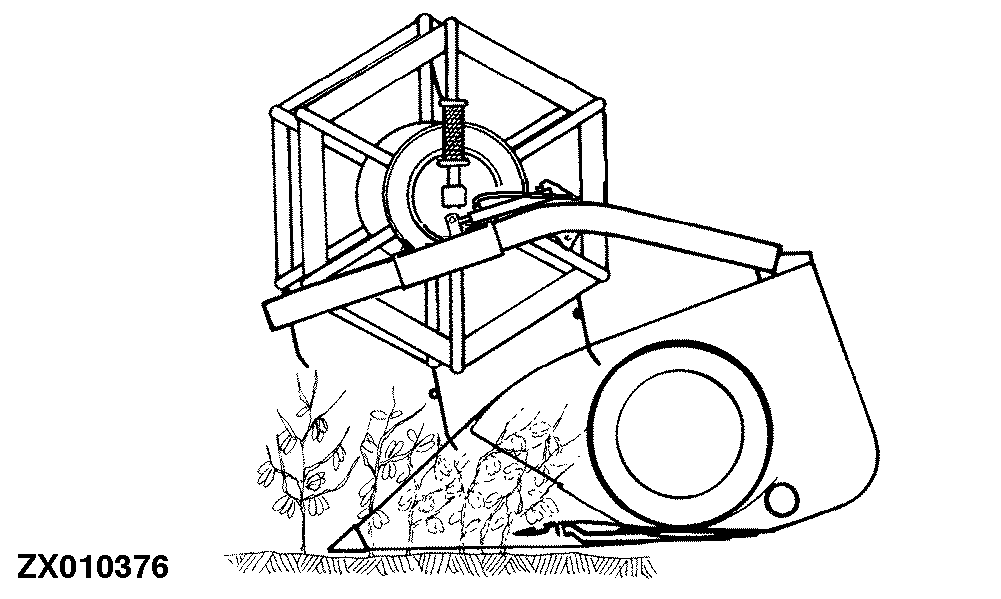

Pickup fingers not angled (vertical).

ZX010376

ZX,OMSLC007525 -19-28DEC96-2/2
