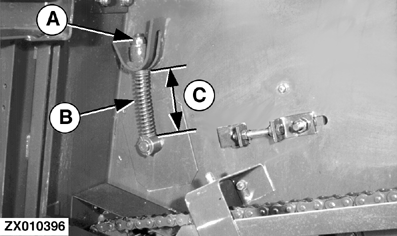

Adjust the height of spring (B) with nut (A) on both sides of the feeder house.

For Corn:

Spring length (C) should be 110 mm (4.3 in.).

For Other Crops:

Spring length (C) should be 140 mm (5.5 in.).

A- Adjusting Nut
B- Spring
C- 110 mm (4.3 in.) For Corn; 140 mm (5.5 in.) For Other Crops
