Angling Reel Pickup Fingers

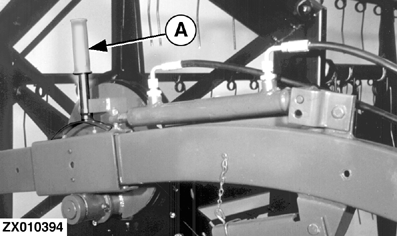

There are eight possible positions. To adjust the finger angle move the attaching bolt by pushing lever (A) into the desired hole.

ZX010394

ZX,OMSLC007530 -19-28DEC96-1/1
