Cutterbar Position

The cutterbar can be in one of three positions relative to the auger: retracted, intermediate and extended.

ZX,OMSLC007538 -19-28DEC96-1/4

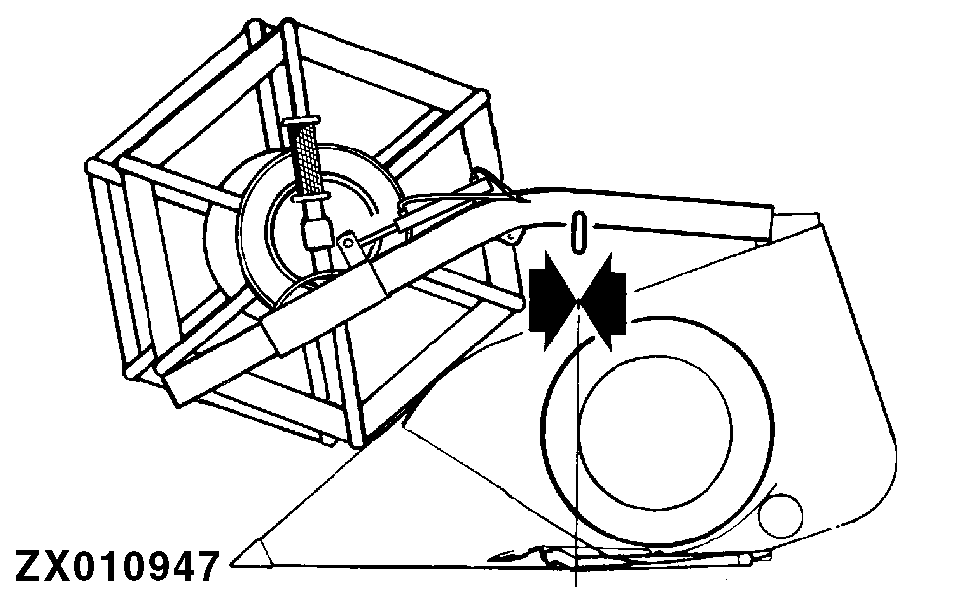

Retracted Position

NOTE: Headers are set in this position at the factory.

    Use this position for the following types of plants:

  • short
  • downed
  • wet
  • weedy
ZX010947

ZX,OMSLC007538 -19-28DEC96-2/4

Intermediate Position

    Use this position for the following types of plants:

  • medium width, medium height
  • standing
  • low moisture
ZX010400

ZX,OMSLC007538 -19-28DEC96-3/4

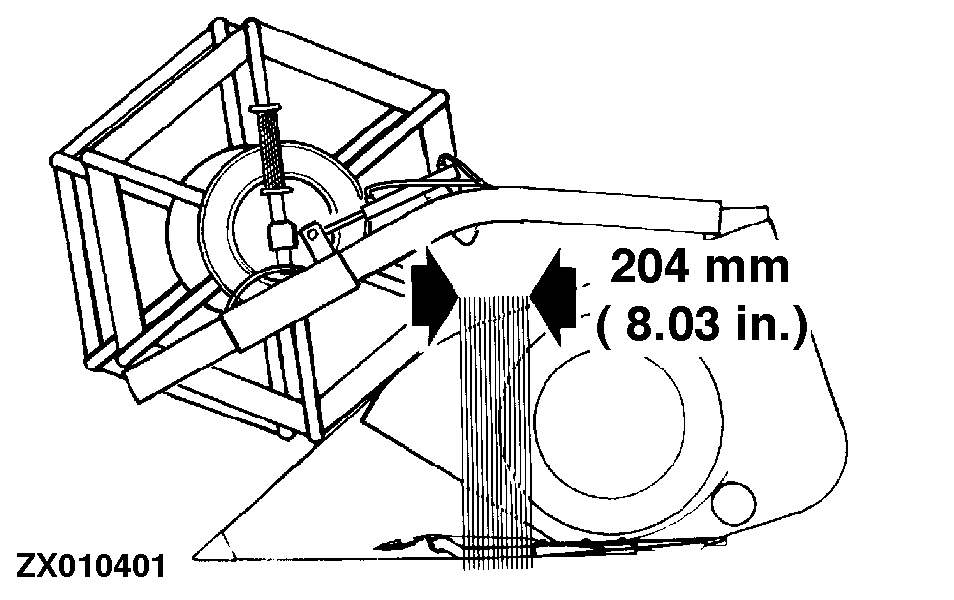

Extended Position

    Use this position for the following types of plants:

  • wide or tall
  • standing
  • dry and easily shelled
ZX010401
