Adjusting Auger Height

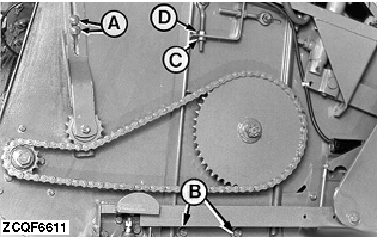

Right Side

Loosen nuts (A) and (B).

To raise the height, loosen nut (D) and tighten nut (C).

To lower the height, loosen nut (C) and tighten nut (D).

Retighten nuts (A) and (B).

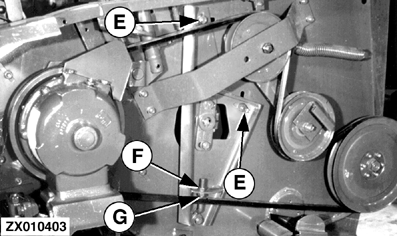

Left Side

Loosen nuts (E).

To raise the height, loosen nut (F) and tighten nut (G).

To lower the height, loosen nut (G) and tighten nut (F).

Retighten nuts (E).

A-Chain Idler Adjusting Nuts
B-Nuts
C-Right-Hand Auger Height Adjusting Nut
D-Right-Hand Auger Height Adjusting Nut
E-Nuts
F-Left-Hand Auger Height Adjusting Nut
G-Left-Hand Auger Height Adjusting Nut

ZX,OMSLC007543 -19-28DEC96-1/1
