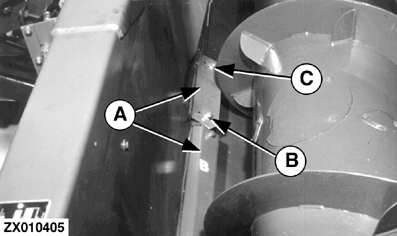

Adjust position of scrapers (A) each time auger height or horizontal position have been altered.

Loosen bolts (B) and slide scrapers (A) so that distance between scrapers and auger flights (C) is approx. 2 mm (0.08 in.).

Tighten all bolts.
