Adjusting Auger Horizontal Position

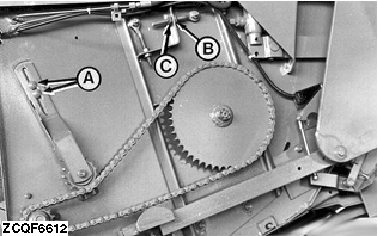

Right Side:

Loosen nuts (A).

To shift the auger forward, loosen nut (B) and tighten nut (C).

To shift the auger backward, loosen nut (C) and tighten nut (B).

Retighten the chain, if necessary.

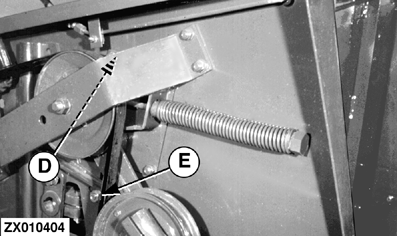

Left Side:

Loosen nuts (D) and (E).

Align the auger and retighten nuts (D) and (E).


A-Chain Idler Adjusting Nuts
B-Auger Position Adjusting Nut
C-Auger Position Adjusting Nut
D-Fixing Nut
E-Fixing Nut

ZCQF6612
ZX010404
