CAUTION: Before adjusting the machine or performing service work, always switch off all drives, shut off the engine and wait until all moving parts have come to a stop.

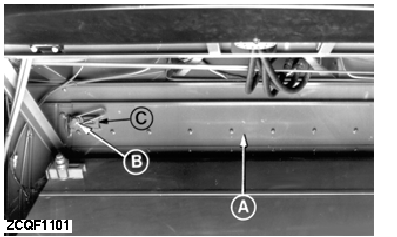

Remove the two nuts (B) and pins (C) to open this port (A).
ZX,OMSLC007550 -19-03JAN97-1/1
CAUTION:
Before adjusting the machine or performing service work, always switch off all drives, shut off the engine and wait until all moving parts have come to a stop.
