CAUTION: Before adjusting the machine or performing service work, always switch off all drives, shut off the engine and wait until all moving parts have come to a stop.
Open the side inspection ports to work on the cylinder.

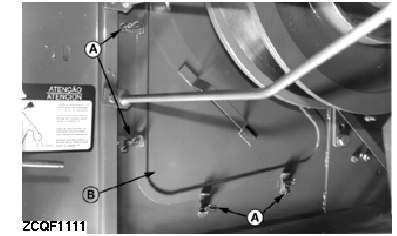

Unscrew wing nuts (A) and pull off cover (B).
ZX,OMSLC007551 -19-03JAN97-1/1
CAUTION:
Before adjusting the machine or performing service work, always switch off all drives, shut off the engine and wait until all moving parts have come to a stop.
