OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OMSLC007552_19

causym CAUTION: Watch out for falling stones when opening the bottom plate (B).

Periodically clean the stone trap.

When lever (A) is in the "down" position, the plate (B) under the stone trap is closed.

To clean the stone trap, pull lever (A) upward to swing down plate (B). Stone strap opens by itself.

Pull lever (A) downward. A spring-loaded bolt holds the lever in this position.

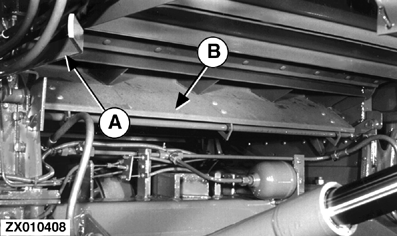

Bottom plate closed

ZX010408

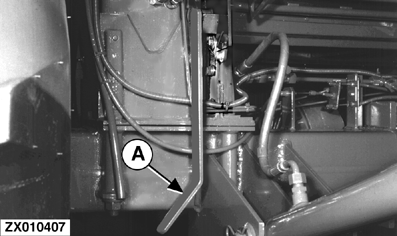

Bottom plate opened

ZX,OMSLC007552 -19-03JAN97-1/1
