Adjusting Concave Extension

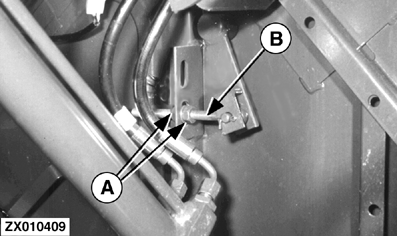

Adjust with bolt (B) using nuts (A) on the left of the combine.

ZX,OMSLC007555 -19-03JAN97-1/2

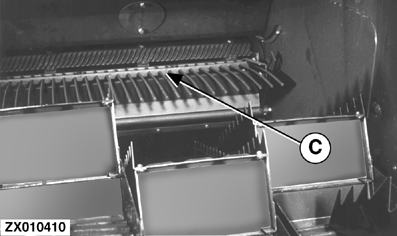

The distance between the beater and the finger rake (C) should be at least 70 mm (2.8 in.) in grain crops.
