De-awning plates are recommended for some crops such as barley and peas.

NOTE: It is not necessary to remove the concave to install the plates.

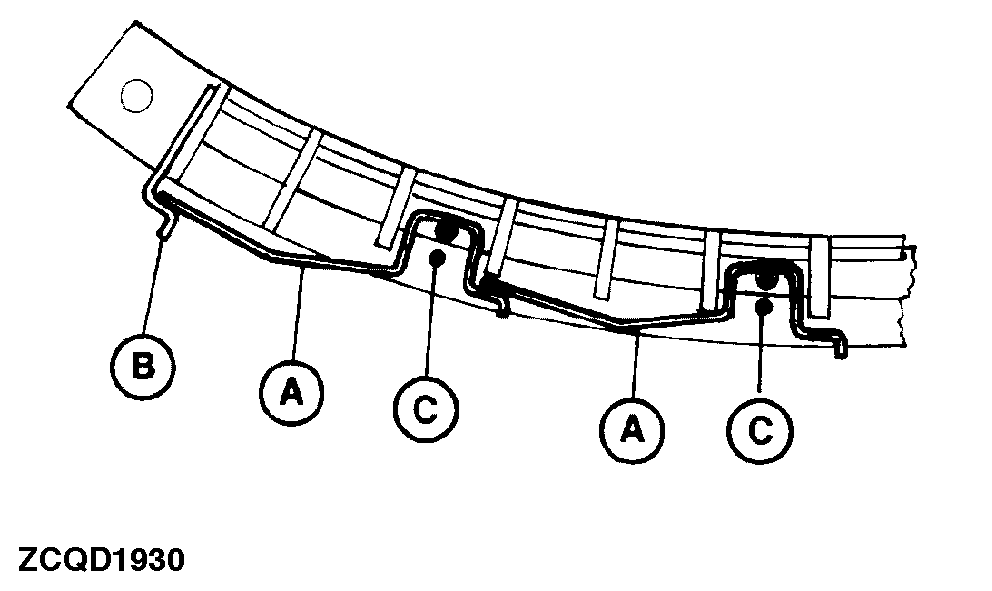

After harvesting, clean the chaff from the front support (B) to ensure that the de-awning plate fits properly in the concave.

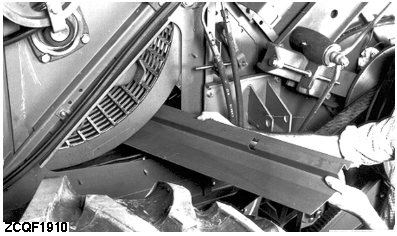

Attach the de-awning plate (A) with the mounting bolts (C).

Use one plate to begin. Then install the second if needed.
