Straw Walker Fishbacks

Fishbacks optimize loose grain separation from chaff by reducing the speed at which straw moves over the straw walkers.

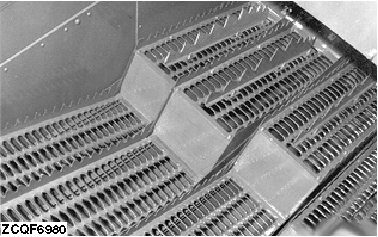

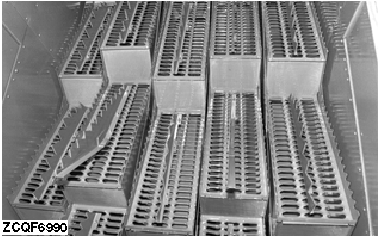

There are two types of fishbacks: small and large. In the basic version only the small ones are installed in the second stage.

NOTE: To avoid loss, more fishbacks can be installed in the basic version for conditions in which it is difficult to separate the grain from chaff (i.e. weedy soy beans or other crops with heavy straw).

ZX,OMSLC007561 -19-03JAN97-1/1
