Adjusting Straw Walker Bearings

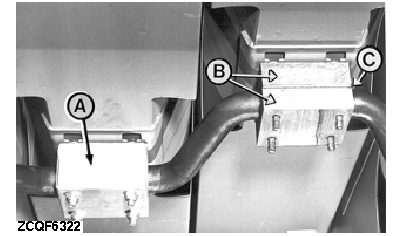

After a period of time, remove the nuts holding shield (A), remove the shield and adjust the gap between both halves (B) of the straw walker bearings by removing shims (C) as needed.
