Removing Chaffer

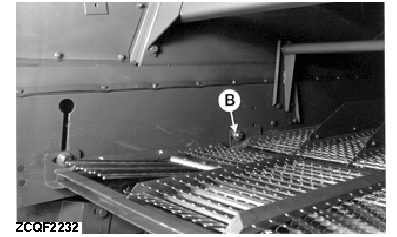

1. Remove the mounting bolts (B).

2. Pull the chaffer back to remove it.

ZCQF2232
