OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OMSLC007569_19_03JAN97.htm

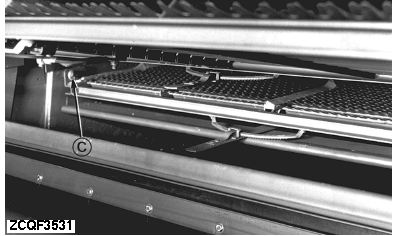

Removing Grain Sieve

1. Remove the mounting bolts (C).

2. Pull the sieve back to remove it.

ZCQF3531

ZX,OMSLC007569 -19-03JAN97-1/1
