Straw Chopper Alarm (Independent of Combine Harvester Computer)

The straw chopper alarms are protected against electrical system failures, even in the switch itself.

The alarm will sound in case of failure.

Before starting the engine each day check each alarm to ensure the contact plate is free and activating the switch correctly.

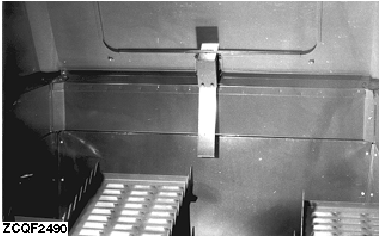

ZCQF2490

Alarm in the rear of the combine

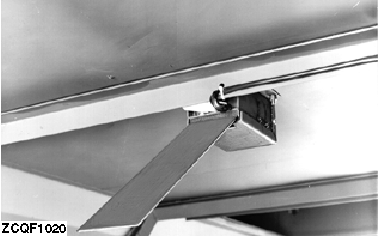

ZCQF1020

Alarm over the straw walker

ZX,OMSLC007585 -19-03JAN97-1/1
