Tensioning Drive Belt to Straw Chopper Countershaft

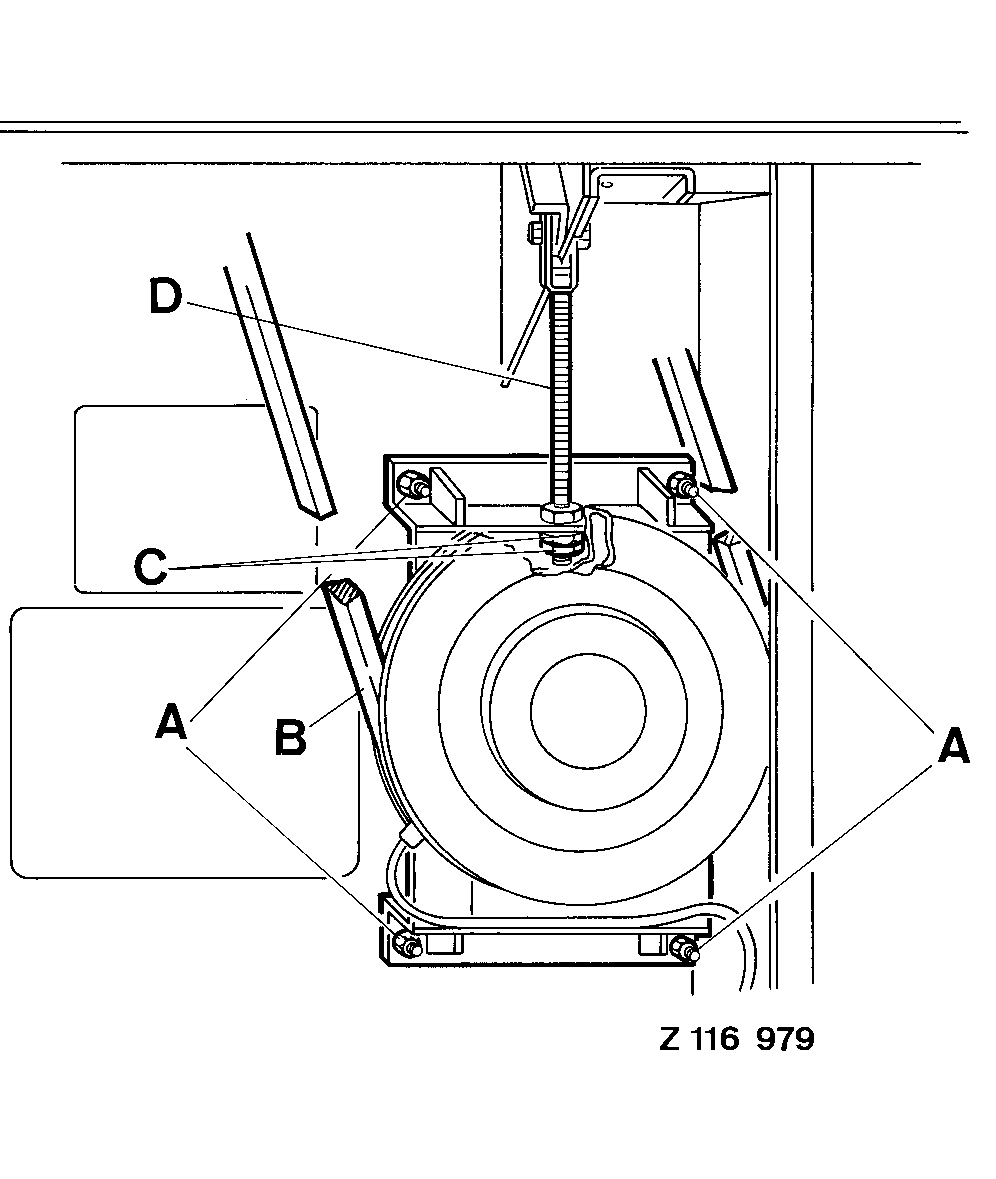

Countershaft drive belt (B) is correctly adjusted when flex midway between pulleys is 25 mm (1 in.).

If adjustment is necessary, loosen hex. nuts (A) and (C), then adjust by means of threaded rod (D).

A-Hex. Nuts
B-Drive Belt
C-Hex. Nuts
D-Threaded Rod

ZX,OMSLC007591 -19-03JAN97-1/1
