IMPORTANT: Thoroughly clean these areas when changing crops while harvesting seeds and at the end of the harvesting period.

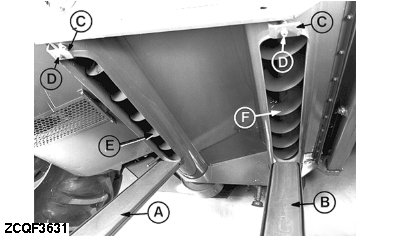

Remove nuts (D) and clamps (C). Remove covers (A) and (B).
A-Grain Elevator Auger Cover B-Tailings Elevator Auger Cover C-Clamps D-Hex Nuts E-Grain Auger F-Tailings Auger
ZX,OMSLC007597 -19-04JAN97-1/1
