Adjusting Tailings Elevator Conveyor Chain

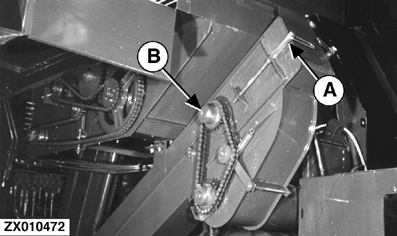

To adjust tension turn both handles (A) at the head of the elevator. This changes position of bearing housings (B) in their guides, tensioning chain. (See "Checking Elevator Conveyor Chain Tension" in this Section).
