Use of Transmission Oil

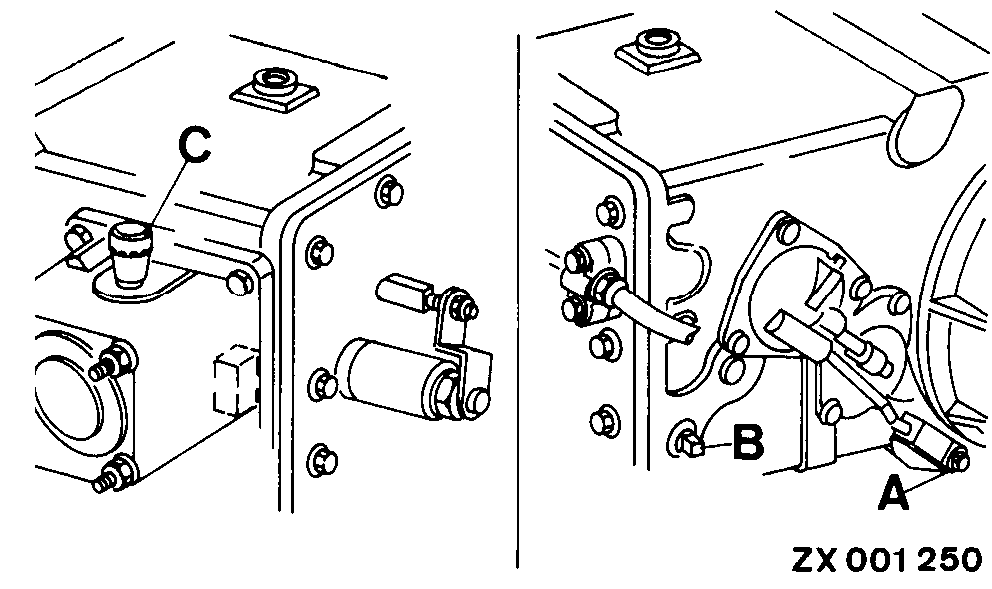

Capacity: 7 L (1.85 U.S. gal)

NOTE: Oil level may be as much as 10 mm (0.04 in.) below the level bore.

A-Drain screw
B-Level plug
C-Filler/breather screw

ZX,OMSLC007606 -19-04JAN97-1/2

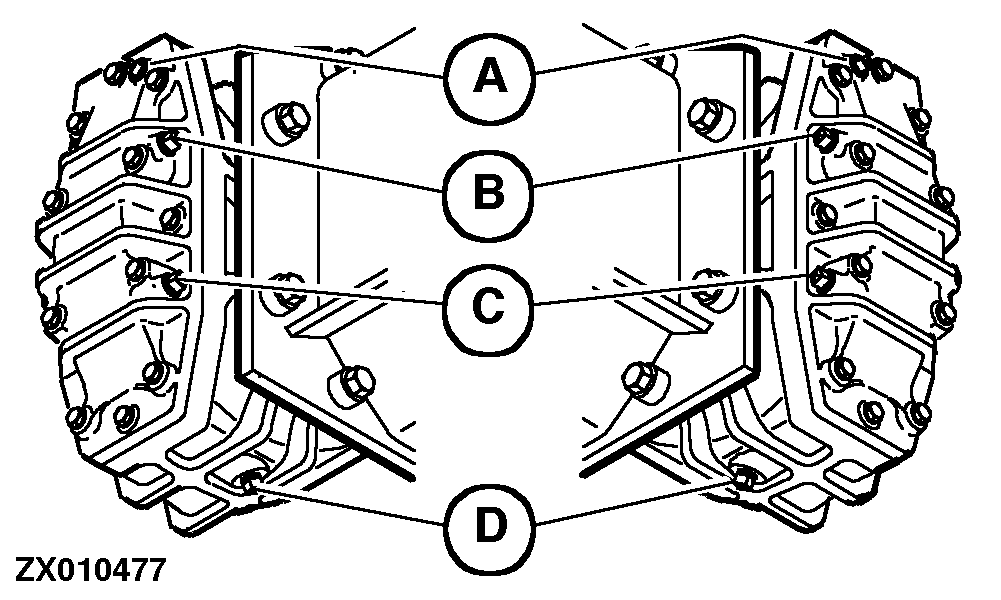

Capacity: 3 L (0.8 U.S. gal) each.

A-Filler Screw
B-Breather Screw
C-Level Plug
D-Drain Screw

ZX,OMSLC007606 -19-04JAN97-2/2
