OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OMSLC007609_19

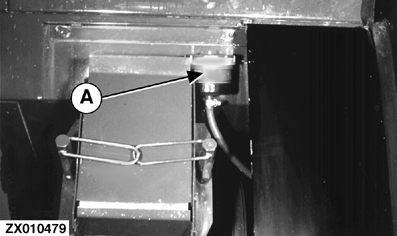

The brake fluid reservoir (A) is located at the right front next to the tailings elevator.

IMPORTANT: Use only brake fluid that meets SAE Standard J 1703 (DOT 4).

Capacity:

Complete system 1.0 L (0.26 U.S. gal)

Reservoir 0.5 L (0.13 U.S. gal)

ZX,OMSLC007609 -19-04JAN97-1/1
