OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OMSLC007618_19

Adjusting Cutterbar Drive Belt Tension

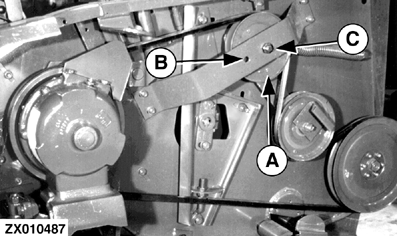

In normal operating conditions or when the cutterbar is completely forward or in an intermediate position, the pulley should be in position (B). When the cutterbar is in the retracted position or when the belt begins to stretch due to wear, the intermediate pulley (A) should be in position (C).

ZX,OMSLC007618 -19-04JAN97-1/1
