Adjusting Cutting Platform Auger Slip Clutch

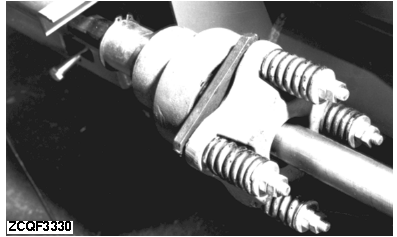

The slip clutch is located on the left end of the drive shaft on the right side of the header.

The spring nuts should be tightened to 75 N·m (55 lb-ft).

Tighten the locknuts to the same torque.

IMPORTANT: Check nut tightness after the first 5 hours of operation and at 25 hours. Then check every week. In adverse operating conditions check more often since frequent activation will loosen the nuts.
