Adjusting Feeder House Hydraulic Reverser Drive Chain

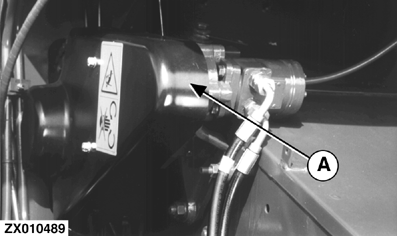

Lift off guard (A).

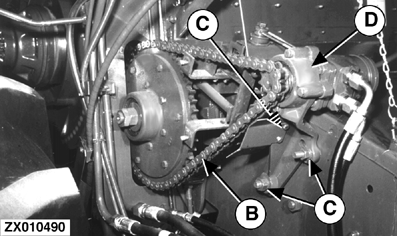

Adjust drive chain (B) tension as follows:

Loosen hex. nuts (C).

Swing hydraulic motor (D) to the front and adjust chain tension as described in "Drive Chains" in this Section.

Retighten hex. nuts (C).

Reinstall guard (A).


A-Guard
B-Drive Chain
C-Hex. Nuts
D-Hydraulic Motor

ZX010489
ZX010490

ZX,OMSLC007624 -19-04JAN97-1/1
