Adjusting Threshing Unit Drive Belt Tension

causym CAUTION: Avoid accidents! Do not adjust the combine while it is running.

Stop the engine and move the threshing control lever. Tension is correct when dimension (X) is between 20 and 30 mm (0.79 to 1.18 in.). Adjust tension as needed with adjusting screw (C).

IMPORTANT: Do not apply dressings to the belt.

NOTE: Keep the threshing unit disengaged when the combine is not working.

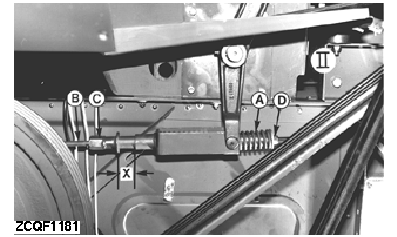

A-Spring
B-Adjusting Rod
C-Adjusting Screw
D-Locknut
X-20 to 30 mm (0.79 to 1.18 in.)

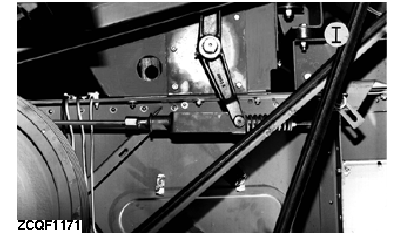

Threshing Unit Disengaged

ZCQF1181

Threshing Unit Engaged

ZX,OMSLC007625 -19-04JAN97-1/1
