Adjusting Unloading Auger Drive Chain

The unloading auger is driven by a shaft fitted with a constant-velocity joint.

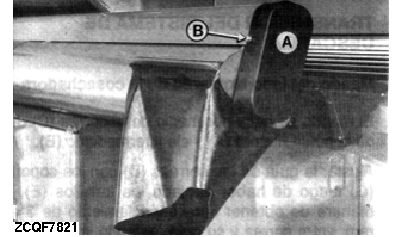

Remove drive shield (A) by taking off the fastener (B) on each side.

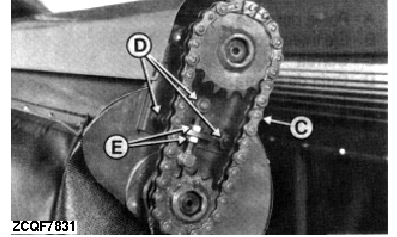

To adjust the tension of chain (C), loosen nuts (D) and adjust with nuts (E).

Tighten nuts (D) and install shield (A).


A-Drive Shield
B-Fastener
C-Drive Chain
D-Nuts
E-Adjusting Nuts
