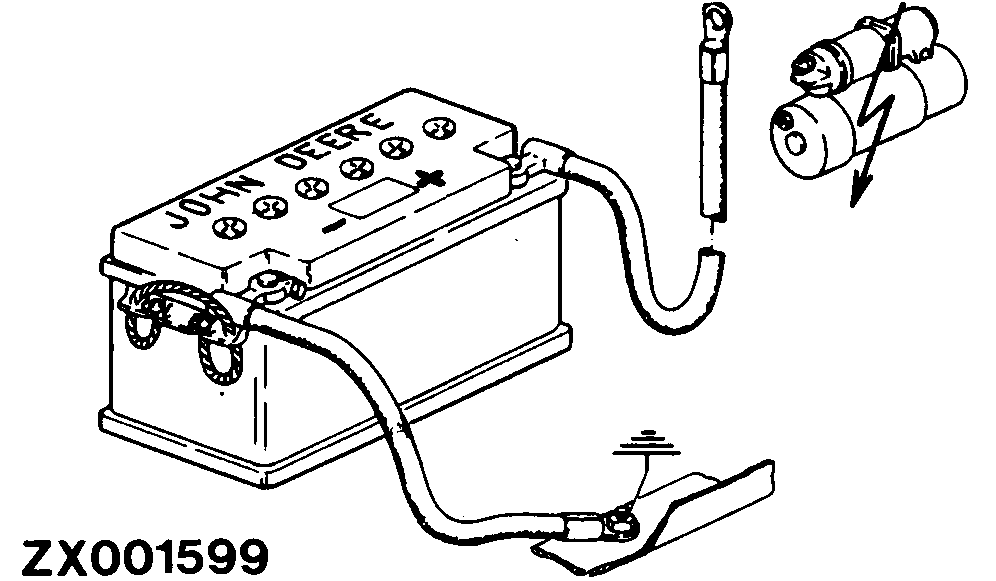

Installing Battery and Connecting to Correct Poles

IMPORTANT: Make sure battery is connected to the correct poles. The positive cable (from starter motor) to the positive (+) poles, the negative cable (from ground) to the negative (-) poles.

Reversed polarity will result in permanent damage to the electrical system.

ZX,OMSLC007649 -19-07JAN97-1/1
