Adjusting Straw Chopper Speed Sending Unit (Combine Harvester Computer Only)

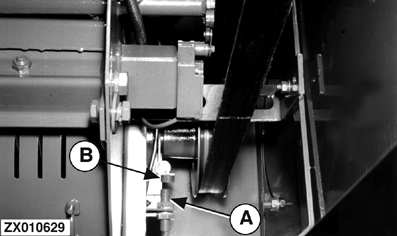

IMPORTANT: Yellow dot on one side of the magnet (B) must face toward the sensor (A).

Adjust position of sensor (A) so that distance between magnet (B) and sensor (A) is about 5 mm (0.2 in.).

ZX010629

ZX,OMSLC007712 -19-07JAN97-1/1
