OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OMSLC007714_19

Adjusting Area Counter Switch (Combine Harvester Computer Only)

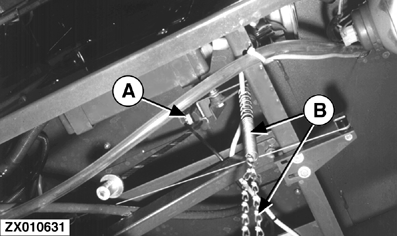

The on/off switch (A) of the area counter is located in the right-hand front corner below the operator's cab.

The feeder house is connected to this switch by means of a spring-loaded chain (B).

The area counter can be engaged at different heights of the cutting platform by shortening or lengthening the effective chain (B) length at the spring.

ZX,OMSLC007714 -19-07JAN97-1/1
