Adjusting Sieve Loss Sensor Position

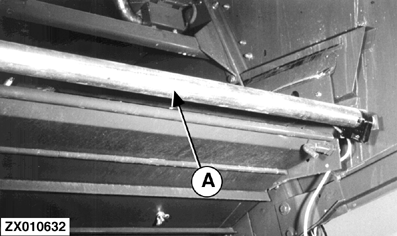

The sensor (A) supports at the left and right have three alternative mounting holes. The optimum position for customary cereals is approx. 120 mm (4.7 in) behind the sieve box and approx. 50 mm (2.0 in.) below the sieve level, measured from the center of the sensor tube.
