OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OMSLC007728_19

causym CAUTION: If necessary, have accumulator changed by your local John Deere dealer.

For 316 and 319 Cutting Platforms

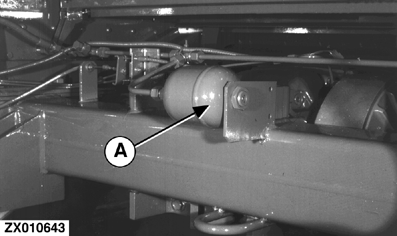

The accumulator (A) has a volume of 0.8 L (0.21 U.S. gal) and is charged to 5500 kPa (55 bar; 800 psi).

For 312 and 314 Cutting Platforms

The accumulator (A) has a volume of 0.8 L (0.21 U.S. gal) and is charged to 3500 kPa (35 bar; 508 psi).

The accumulator is maintenance-free and cannot be repaired if damaged.

ZX,OMSLC007728 -19-01DEC98-1/1
