Hydrostatic Drive Components

The hydrostatic transmission transmits engine torque to the wheels by means of pressurized hydraulic oil.

The hydraulic pump (D) is driven by the combine engine via a poly V-belt (B).

The pump draws oil from reservoir (I). High pressure oil from the pump reaches the hydrostatic motor (H) by means of hoses (G). The motor then drives the gearbox which conveys engine torque to the final drives and, from there, to the front wheels of the combine.

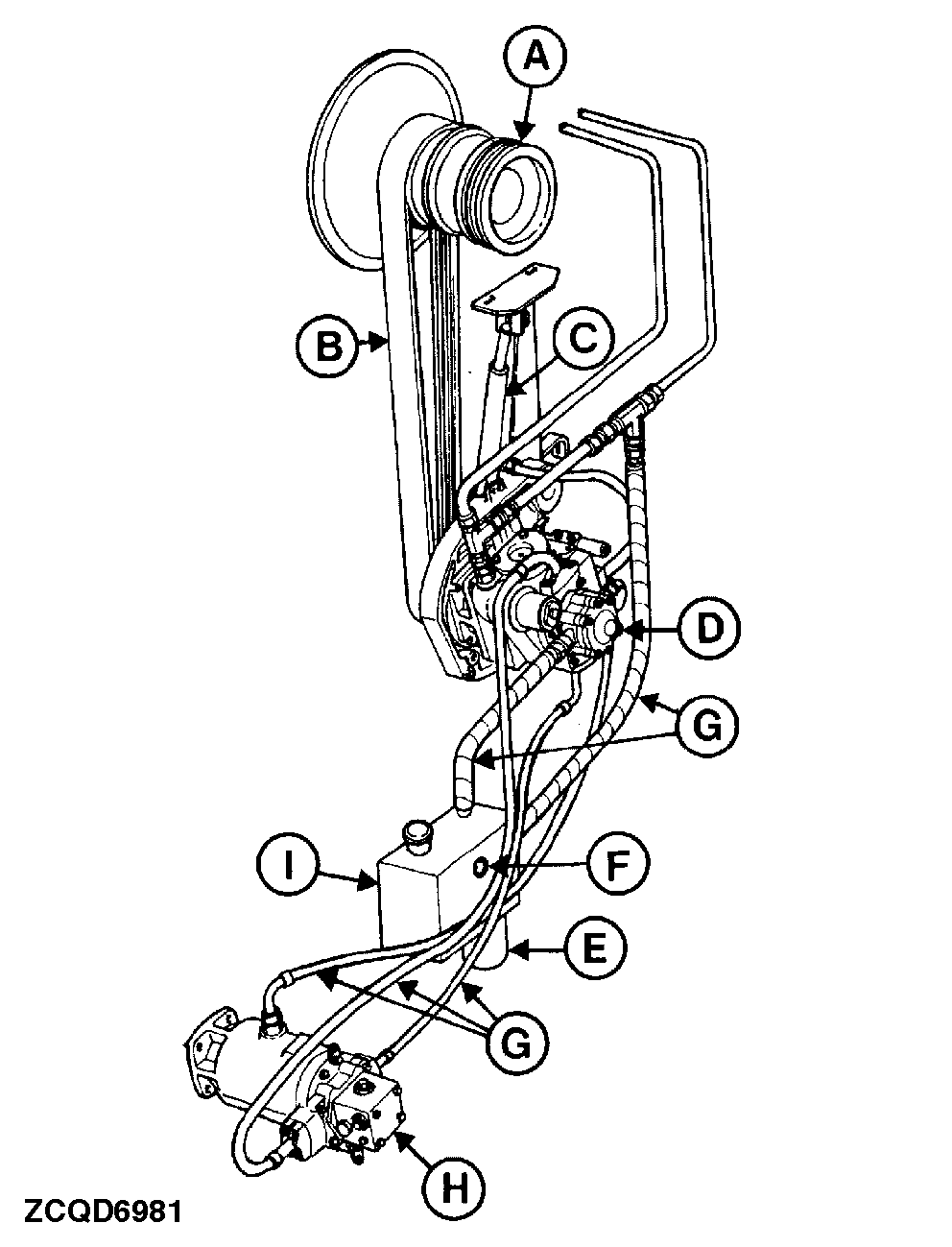

A-Engine Drive Pulley
B-Poly V-Belt
C-Tension Cylinder
D-Hydraulic Pump
E-Oil Filter
F-Sight Glass
G-Hose
H-Hydrostatic Motor
I-Oil Reservoir
