Cleaning Oil Cooler

The hydrostatic oil cooler (D) is located in front of the engine radiator.

NOTE: Periodically clean the outside of the oil cooler. At the same time, clean the outside of the radiator.

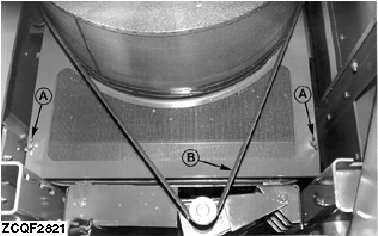

Remove wing nuts (A).

Loosen belt (B) by releasing idler spring (C).

Swing the cover forward and leave it in that position.

Release the oil cooler (D) from its latches.

With one hand, move the cooler (D) forward and clean it.

A-Wing Nuts
B-Rotary Screen Drive Belt
C-Idler Spring
D-Hydrostatic Oil Cooler
