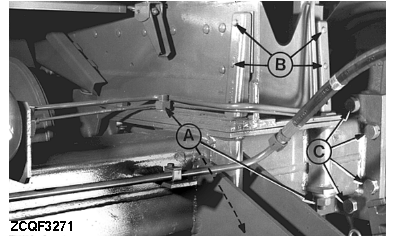

Tightening Front Axle Attaching Screws

    Tighten as follows:

  • Nuts (A) to 300 N·m (218 lb-ft).
  • Bolts (B) to 200 N·m (145 lb-ft).
  • Bolts (C) to 250 N·m (182 lb-ft).

NOTE: Tighten during the first 25 hours of operation and then at the start of each harvesting season.

ZCQF3271

ZX,OMSLC007735 -19-09JAN97-1/1
