Rear Axle Toe-In

Whenever the combine becomes difficult to steer or the rear tires begin to wear unevenly, adjust the rear wheel toe-in.

Proceed as follows to check and adjust alignment:

On a flat surface, straighten the rear wheels.

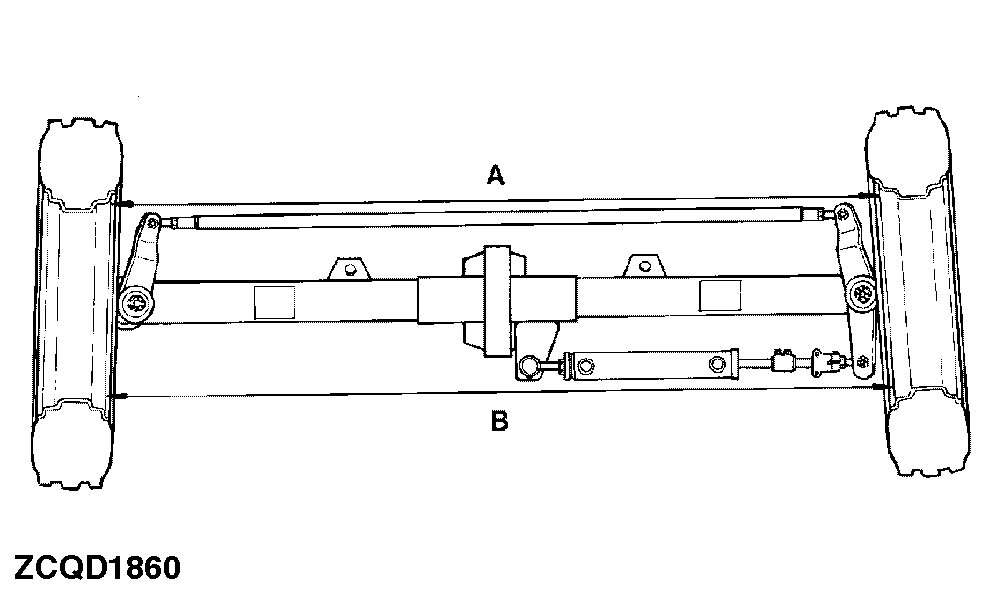

Mark a point at the front center of each tire. Measure distance (A).

Then mark the diametrically opposed point, i.e. the rear center of each tire.

Measure distance (B). It should be 10 mm (0.4 in.) greater than distance (A).

To adjust, loosen the locknuts at both ends of the tie rod and adjust the tie rod length.
