Low Pressure Switch

IMPORTANT: Use the highest comfortable fan speed and adjust the air conditioning system to an intermediate setting. Do not operate the air conditioning system at maximum output when the fan is at its lowest speed setting.

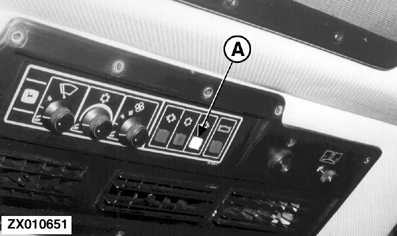

The air conditioning system is equipped with a low pressure switch (located in cab roof) which switches off the system in the event of a refrigerant leak. In this case, light (A) will come up to alert the operator.

Some leakage through air conditioning hoses cannot be avoided. Check refrigerant level every 200 to 300 hours of operation. When necessary, have system recharged by your John Deere dealer.
