OMZ92614 M8: 1170 Combine and 312, 314, 316, 319 Cutting Platforms (Combine From Serial No. 62613), Block File: ZX_OMSLC007740_19

High Pressure Switch

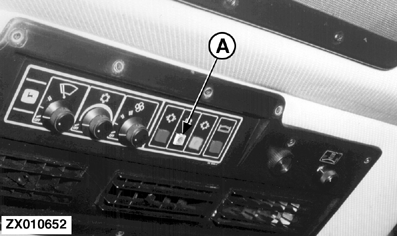

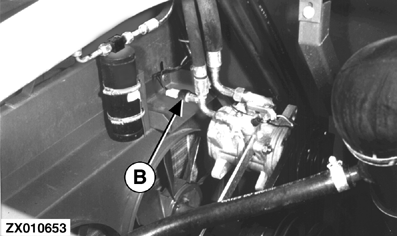

Light (A) indicates that the high pressure switch (B) has stopped the air conditioning system. Stop the combine harvester and clean the condenser (see "Cleaning Condenser" in this Section).

If the indicator light remains on after the condenser has been cleaned, see your John Deere dealer.

ZX,OMSLC007740 -19-09JAN97-1/1
