Cutterbar Blade Position (Relative to the Double Fingers)

The cutterbar position is set at the factory and does not need readjustment unless the actuating arm (A) has been removed from the splined shaft (B).

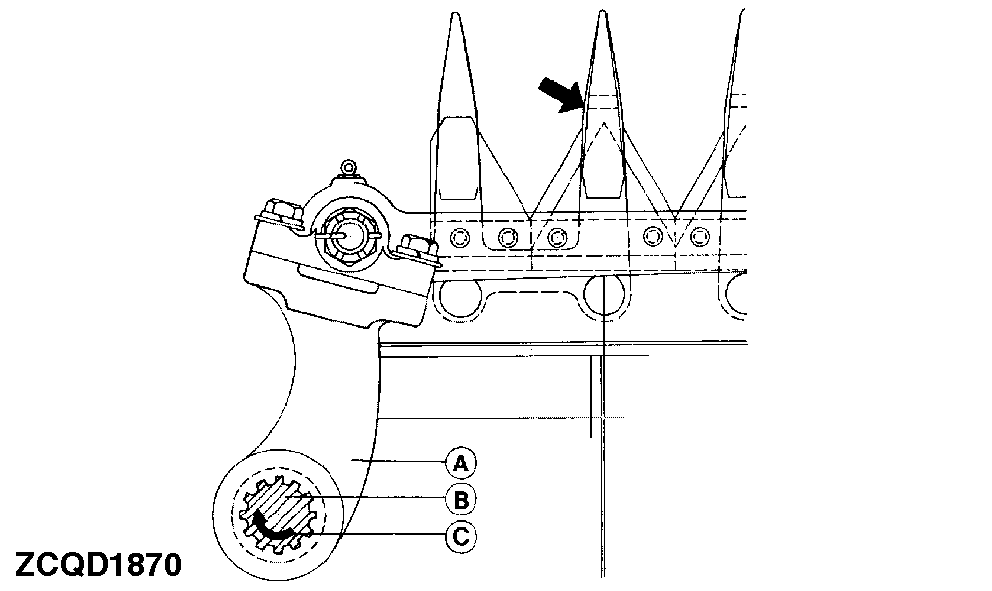

With the splined shaft fully clockwise (C), the first entire blade should be centered in the first double finger as shown by the arrow.

A-Actuating Arm
B-Yoke Shaft
C-Maximum Clockwise Rotation

ZX,OMSLC007749 -19-09JAN97-1/1
