Adjusting Blade Support Clamps

The blade support clamps should keep the blades centered in the double fingers and allow them to move without vibrating. Adjust after aligning the fingers.

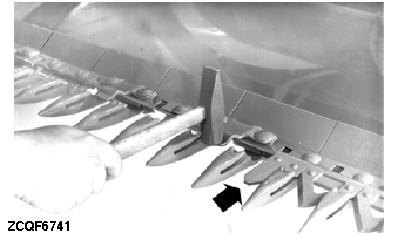

Raise or lower the end of the clamp until the blades move without vibrating. When lowering the end of a clamp make sure it is not on a blade.

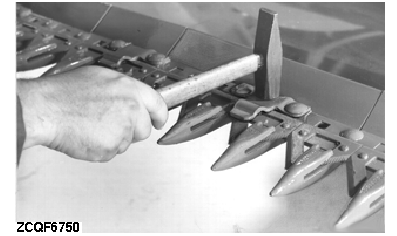

If a clamp is blocking the blade, hit the clamp between the bolts. After adjusting the clamps make sure the blades move freely.
