Cutting Mechanism Drive Oil Level

IMPORTANT: Always make sure the gearbox vent is clear.

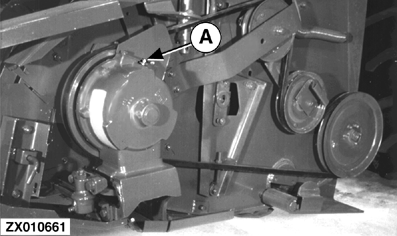

Insert a clean wire in the gearbox. The oil level should be 100 mm (3.94 in.) below the opening (A).

Check the level each week.

NOTE: Changing the gearbox oil is not recommended. When needed, add specified oil only (see "Fuel, Lubricants, Coolant and Capacities" Section).
